ChemGrout CG-575

• The ChemGrout CG-575-3C6 Diesel Hydraulic is versatile and time tested grout plants when it comes to mixing and pumping wide range of materials such as repair mortars, stucco, plasters, fireproofing and finish coats.
• The CG-575-3C6 Diesel Hydraulic features a size 6 open throat progressive cavity pump, with a non-pulsating positive displacement rotor-stator that ensures a constant discharge of materials give a output of 8 gpm at 261 psi.
• The CG-575-3C6 Diesel Hydraulic has a 45-gallon mix tank equipped with bag breaker, baffles and a variable speed high-efficiency paddle mixer that provides high shearing action for thorough and complete particle wetting.
• The pump’s new high-strength aluminum alloy construction offers durability and a weight reduction of 33% over that of similar pumps.

Request A Quote

Diesel Engine driven machine

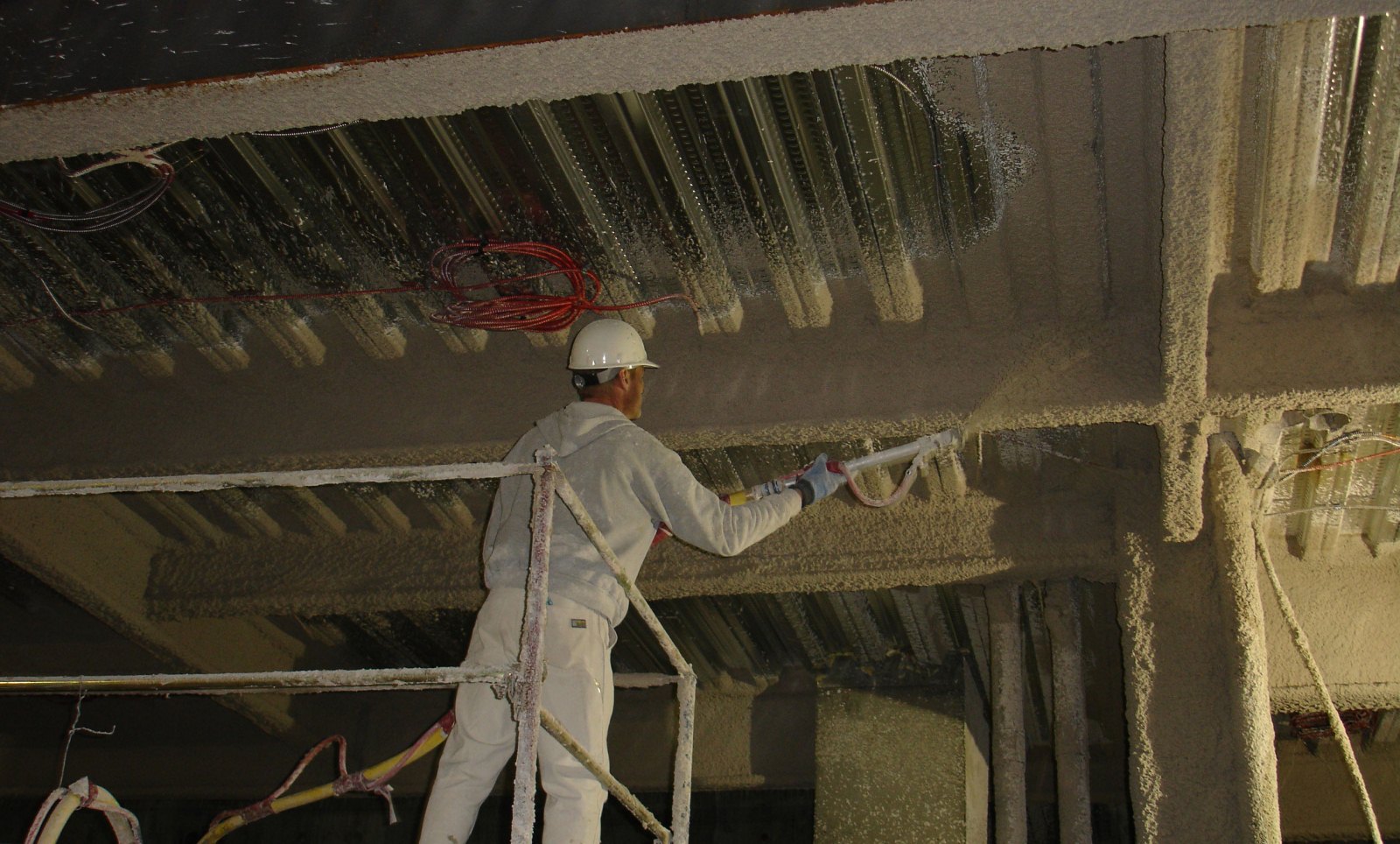

• Simple operated Diesel engine driven Fireproofing machine.
• The multi-mixer rotor stator pump mixes pumps and sprays site mix and ready-mix mortar effortlessly.
• Has built in 3 Cylinder Kubota Engine and compressor.
• Maximum output of 40 l/min at 25 bar maximum pressure.
• Vertical and horizontal pumping distance of 60 m and 120 m respectively.

Electric Mortar driven machine

• Electric mortar 5.5 kW, 400 V 50Hz / 60 Hz
• Maximum output of 40 l/min at 25 bar maximum pressure
• Vertical and horizontal of pumping distance of 40 m and 60 m respectively
